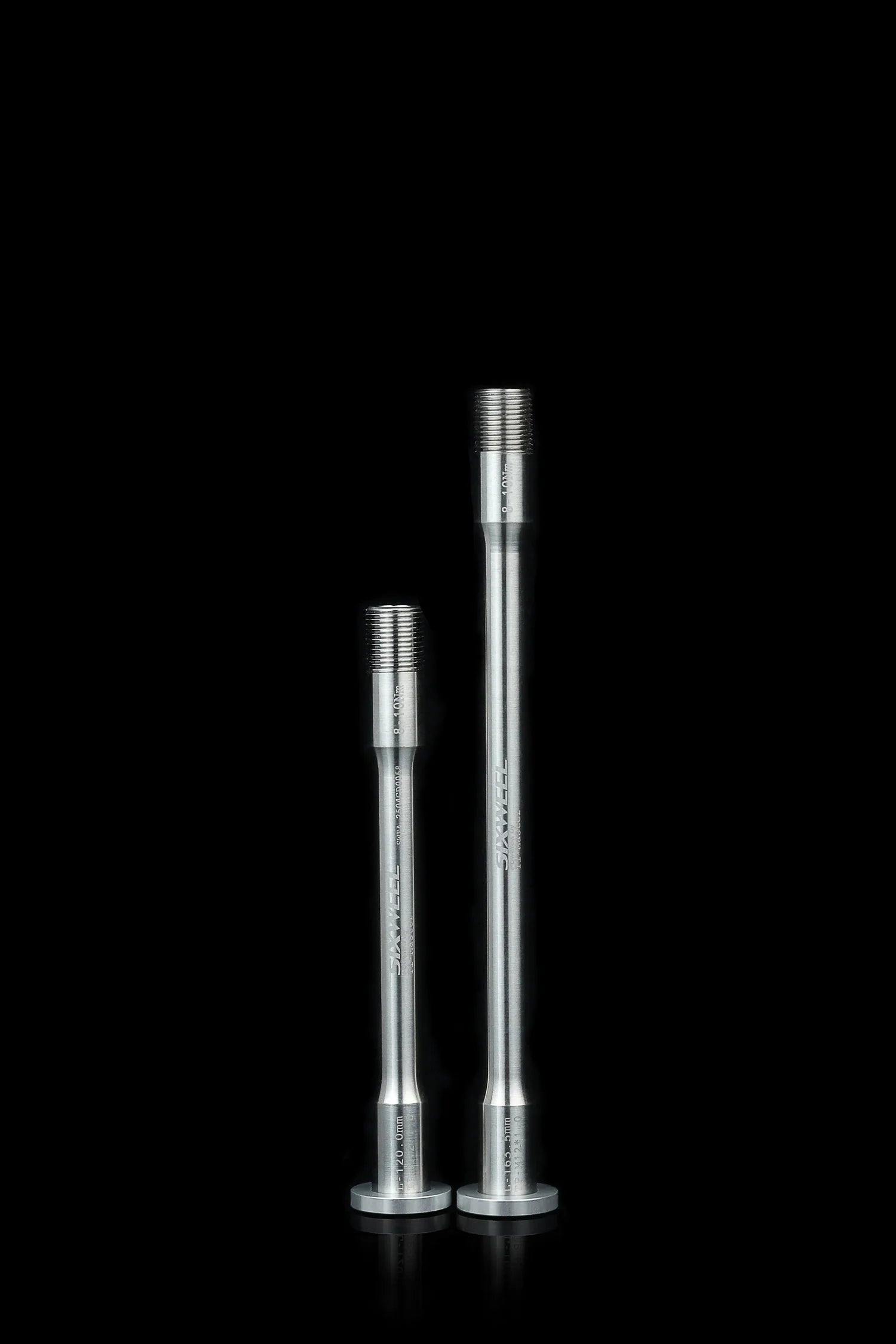

Sixweel Titanium Thru Axles

CONTACT US TO ORDER FOR A SPECIFIC MODEL.

Material Characteristics: TC4/Grade5 titanium alloy, tensile strength reaches over 1050Mpa after special heat treatment, and the surface hardness of the axle body reaches 36HRC.

Appearance and structural design: Pursuit of extreme lightness and quality, not to shorten the length or reduce the diameter of the top to pursue lightness, so as not to cause damage to the washers or frame due to excessive pressure.

Optimized functionality: The 6 mm hex tool position is made of a special titanium alloy with a hardness of 46 HRC in the hex tool position, which prevents tooth slippage due to deformation.

Processing Technology: Sixweel utilizes Ti-Master technology to achieve 0.45 to 0.5mm (±0.01mm) uniform wall thickness on high hardness titanium alloy materials. Under the premise of ensuring concentricity, the wall thickness is fully guaranteed to have a cross-sectional area of 14.1 square millimeters, which can withstand an equivalent tensile force of more than 1000kg, and the actual tensile test results are higher than the calculated results.
*Actual design and processing parameters are subject to adjustment without notice.

Safety Test: Passed torque test and machine test;
Torque test:
20Nm continuous disassembly 50 times, check the torque value at 5 intervals, no damage;
12Nm continuous disassembly 500 times, check the torque value at 20 intervals, no damage;
Machine tension test: machine test tension value is more than 1000kgf, (The version used during testing has a wall thickness of 0.4mm).
