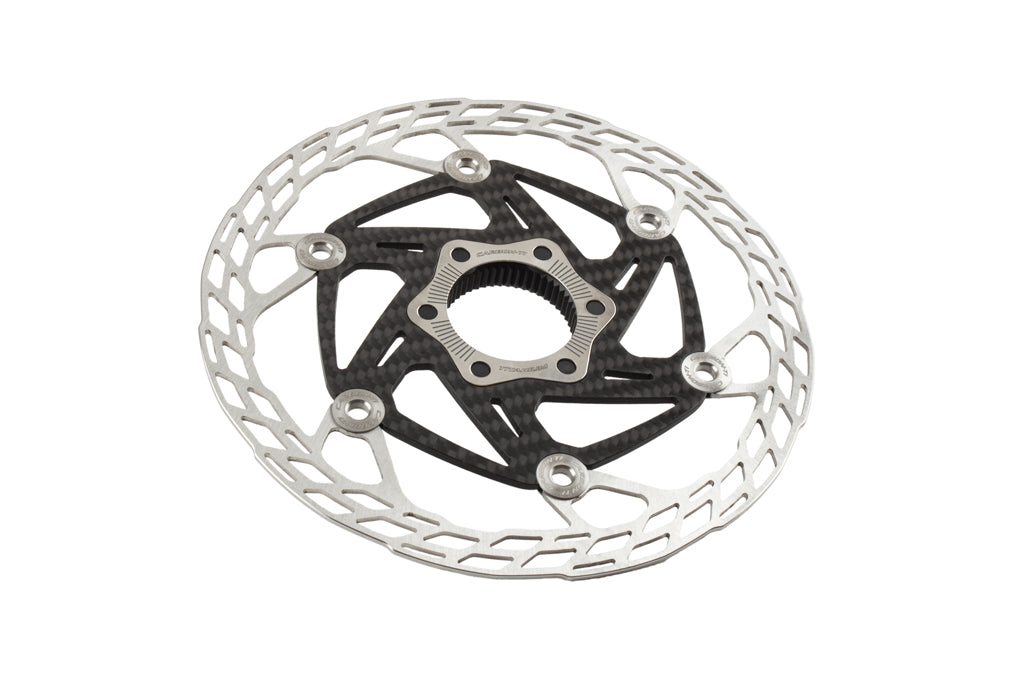

Carbon-Ti X-Rotor SteelCarbon 3 Center Lock

STOCK ARRIVING SOON - CONTACT US TO PRE ORDER!

Carbon-Ti disc rotor represents an evolution of the X-Rotor SteelCarbon 2 model, which gained widespread acclaim among MTB and road enthusiasts since its debut in 2015.

It is made for fixing on Center Lock hubs and ensures direct and efficient compatibility.

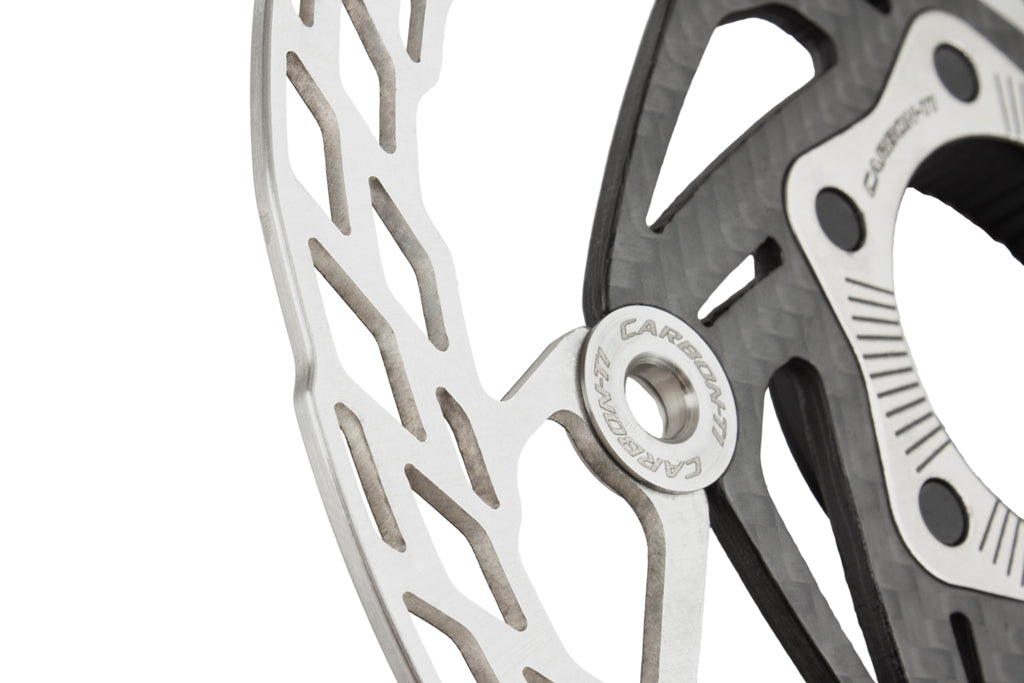

It is a superlight semi-floating disc rotor with a steel braking surface, a carbon fiber inner body, an Al7075 Center Lock specific Adapter, a laser-engraved titanium protection plate, and fixing rivets.
The disc rotors now feature a profile with rounded CNC-machined edges, that increase safety and comply with the Union Cycliste Internationale (UCI) regulations.
The 1.8 mm thick special steel track has been redesigned to improve braking performance, enhance heat dissipation, and enable more even pad wear.

The rivets and washers are made of Grade 5 titanium and represent a highly technical solution, in line with previous versions, ensuring high lightness, strength, and reliability.
It is provided with an extremely low profile lockring, which offers wide compatibility with hubs equipped with 12, 15, or 20 mm thru-axles.
It can be used with any pad (organic pads are recommended).
Made in Italy.

140mm: 86g

160mm: 98g

For more Carbon-Ti products, including disc brake rotors, chainrings and accessories. Contact us.

The exceptional development of the new X-Rotor SteelCarbon 3 disc rotors was made possible thanks to a close collaboration with the UAE Team Emirates World Tour team.

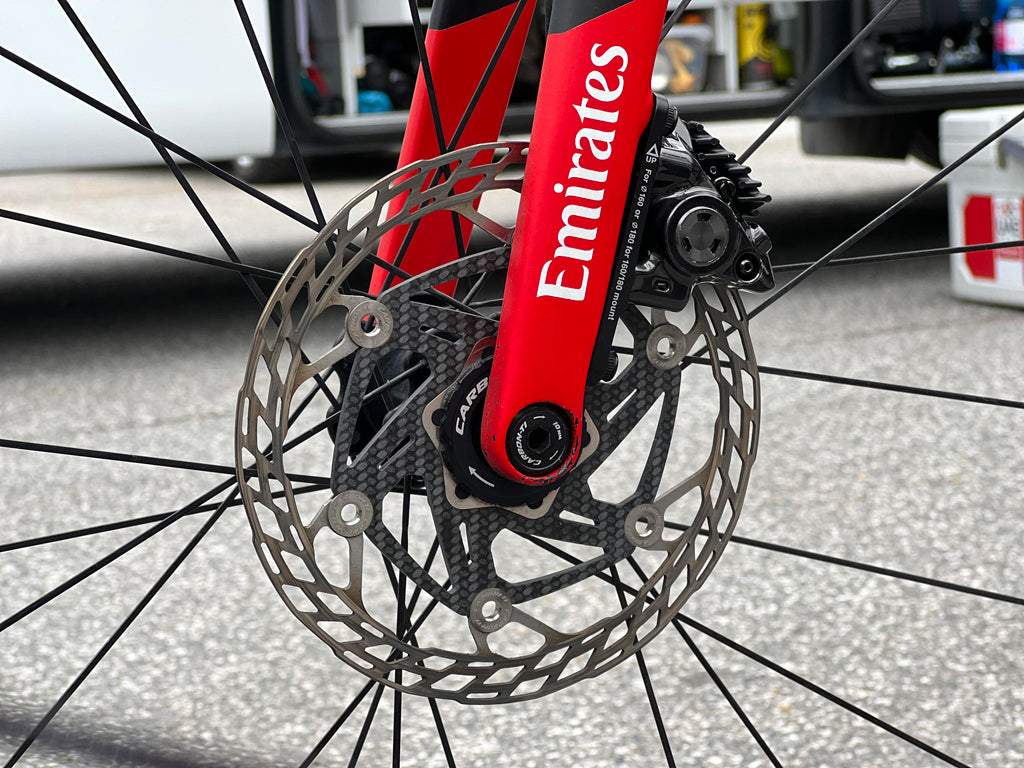

For months, professional cyclists from this prestigious team have tested the X-Rotor SteelCarbon 3 discs on their Colnago V4RS bikes in extremely challenging conditions.
